Stenner Series 85MP Pumps - Easy to order page. This page covers the Stenner Models 85MPHP5, 85MPHP10, 85MPHP17, 85MP1, 85MP2, 85MP3, 85MP4, and 85MP5.

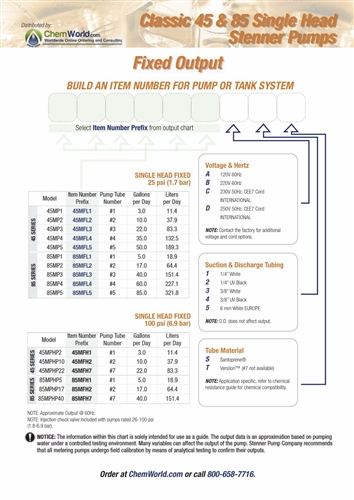

Understanding the Stenner Pump model number.
The Stenner Pump part number may be difficult. When ordering based on the model number you must cross-reference to the part number. "45MP" is the base number. The "F" means the product pump is a fixed rate pump. The following digit is "H" or "L". This stands for high and low pressure. The last number is in the part number below is the tube size (1,2,3,4,5,7) which determines the output (GDP) of the Stenner Pump.

Model Number	Part Number	Pressure Rating	GPD
85MPHP5	85MFH1	100 psi	5.0 gpd
85MPHP17	85MFH2	100 psi	17.0 gpd
85MPHP40	85MFH7	100 psi	40.0 gpd
85MP1	85MFL1	25 psi	5.0 gpd
85MP2	85MFL2	25 psi	17.0 gpd
85MP3	85MFL3	25 psi	40.0 gpd
85MP4	85MFL4	25 psi	60.0 gpd
85MP5	85MFL5	25 psi	85.0 gpd

Now that you understand the Stenner model number versus part number, choose the following next options:

1. The voltage and hertz. (110/120 or 220/240 Volt)
2. The material suction and discharge tubing size and material. (1/4" or 3/4")

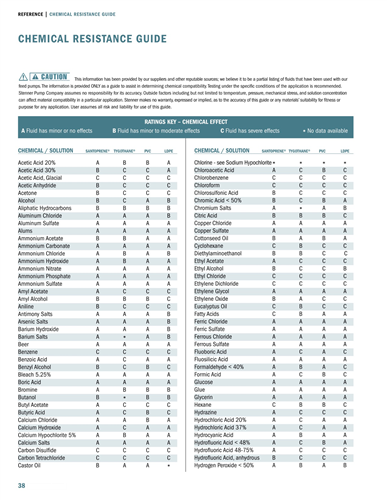

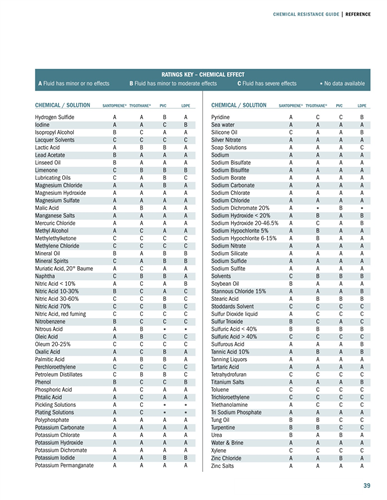

3. The tube material. When electing the tube type use the material compatibility chart. (S or T)

Ordering example:

The default part number is 85MFL1A1S. When you choose the options it will change to the exact part number you need.

Pump option includes:

• QTY 3 - 1/4" connecting nuts & ferrules (1/4" tubes) or three 3/8" to 1/4 adaptors.
• QTY 1 - Chemical injection check valve 100 psi (6.9 bar) or 1 injection fitting 25 psi (1.7 bar).
• QTY 1 - 1/4" or 3/8" Weighted suction line strainer.
• QTY 1 - 20' white or UV black roll suction/discharge tubing (1/4" or 3/8").
• QTY 1 - Additional pump tube.
• QTY 2 - Additional latches.
• QTY 1 - Mounting bracket.

Also, you may choose to order the tank or PCM as an option.

Due to the variation, each pump is assembled to order.

If you enter a company name upon ordering, your product will ship from 1 to 3 shipping locations throughout the USA.

If you do not enter a company name, the product must ship to Atlanta, Salt Lake, or Detroit. Lead time will be 5 to 10 days to receive your product if this is the case.

So please include your company name upon ordering to avoid delays.

This map below is the Free Shipping ground transit map for Company locations only. The product will ship within 24-48 hours after ordering online. We do not off rush service for this product.
