Stenner 85M

Stenner Series 85M Pumps - Easy to order page. This page covers Stenner Pumps 85MHP10, 85MHP17, 85MHP40, 85M1, 85M2, 85M4, and 85M5 model types.

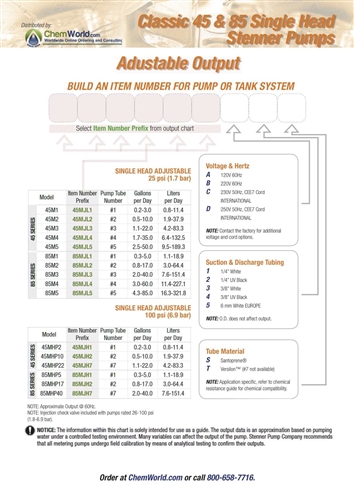

Understanding the Stenner Pump model number.
The Stenner Pump part number may be difficult. When ordering based on the model number you must cross-reference to the part number. "85M" is the base number. The "F" means the product pump is a fixed rate pump. The following digit is "H" or "L". This stands for high and low pressure. The last number is in the part number below is the tube size (1,2,3,4,5,7) which determines the output (GDP) of the Stenner Pump.

Model Number	Part Number	Pressure Rating	GPD
85MHP10	85MJH1	100 psi	3.0 to 5.0 gpd
85MHP17	85MJH2	100 psi	0.8 to 17.0 gpd
85MHP40	85MJH7	100 psi	2.0 to 40.0 gpd
85M1	85MJL1	25 psi	0.3 to 5.0 gpd
85M2	85MJL2	25 psi	0.8 to 17.0 gpd
85M3	85MJL3	25 psi	2.0 to 40.0 gpd
85M4	85MJL4	25 psi	3.0 to 60.0 gpd
85M5	85MJL5	25 psi	4.3 to 85.0 gpd

Now that you understand the Stenner model number versus part number, choose the following next options:

1. The voltage and hertz. (110/120 or 220/240 Volt)
2. The material suction and discharge tubing size and material. (1/4" or 3/4")

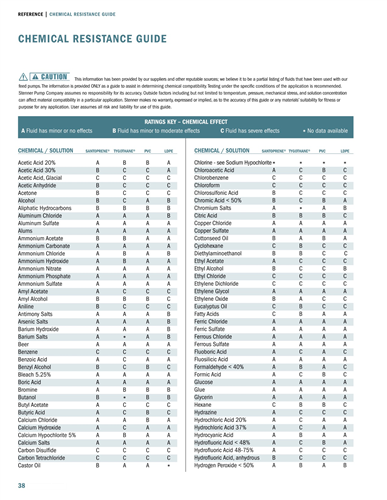

3. The tube material. When electing the tube type use the material compatibility chart. (S or T)

Ordering example:

The default part number is 85MJL1A1S. When you choose the options it will change to the exact part number you need.

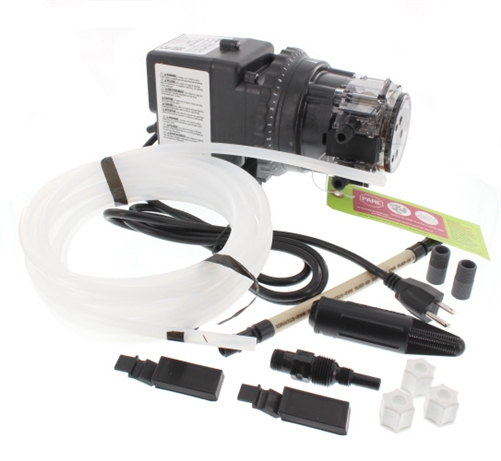

Pump option includes:

• QTY 3 - 1/4" connecting nuts & ferrules (1/4" tubes) or three 3/8" to 1/4 adaptors.
• QTY 1 - Chemical injection check valve 100 psi (6.9 bar) or 1 injection fitting 25 psi (1.7 bar).
• QTY 1 - 1/4" or 3/8" Weighted suction line strainer.
• QTY 1 - 20' white or UV black roll suction/discharge tubing (1/4" or 3/8").
• QTY 1 - Additional pump tube.
• QTY 2 - Additional latches.
• QTY 1 - Mounting bracket.

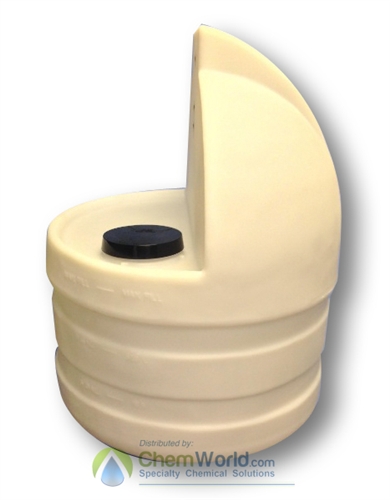

Also, you may choose to order the tank or a PCM as an option.

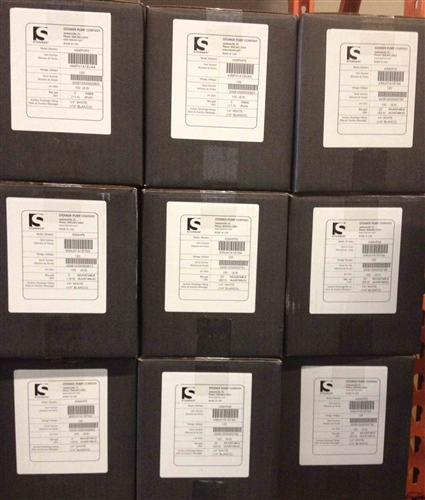

Due to the variation, each pump is assembled to order.

If you enter a company name upon ordering, your product will ship from 1 to 3 shipping locations throughout the USA.

If you do not enter a company name, the product must ship to Atlanta, Salt Lake, or Detroit. Lead time will be 5 to 10 days to receive your product if this is the case.

So please include your company name upon ordering to avoid delays.

This map below is the Free Shipping ground transit map for Company locations only. The product will ship within 24-48 hours after ordering online. We do not off rush service for this product.
