Neptune JGF Series Mixers - JGF 2.0 to JGF 9.1

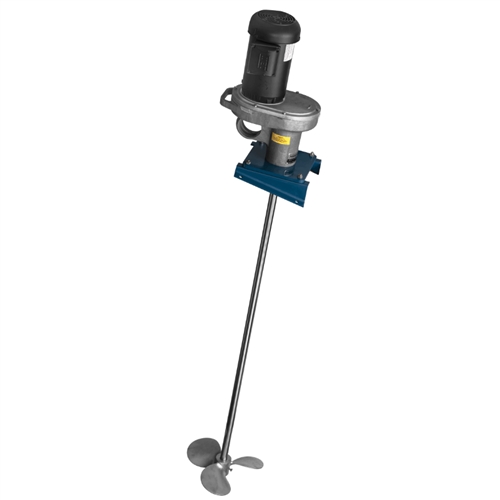

Neptune JGF Series Mixer

Alternative Views:
Neptune JGF Series Mixers - JGF 2.0 to JGF 9.1
Our Price: $5,258.00
Sale Price: $4,890.00
Savings: $368.00


Quantity in Stock:9

Free Shipping
Availability: Usually Ships in 7 to 10 days
Product Code: JGF


The following document(s) will be emailed upon shipment of your order or download now:


JGF Models*:

JGF Flanges*:

Shaft Length*:

Ring Stablizer*:

Air Sets*:

Qty:
Description Shipping & Transit Times


Neptune JGF

Heavy Duty Portable Mixers Series JGF Gear Drive Mixer, Flange Mount Heavy Helical Gear, 350 rpm, Grease Lube Compact mixers for the most popular mixing applications. Grease filled gearbox eliminates oil seal and the possibility of oil contamination in the process. Features

No clutches to slip, wear or replace.
  • 316SS propellers and shafts are standard. Optional coatings such as rubber, PVC or Teflon also available.
  • Square pitch 1.0 ratio marine propellers are used exclusively. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs.
  • Vibration-absorbing pad standard.
  • Motors are available in TEFC or explosion-proof enclosures (1750 rpm, 56C frame). Air motors also available.
  • Gears run in grease lubrication. It cannot leak oil.
  • All JGF mixer shaft bearings are permanently lubricated.
  • Variable speed drives also available.
  • Cast aluminum housing.
  • Flange stuffing box rated to 15 PSI.
  • Standard mounting flange is 6" carbon steel, 316SS optional.
  • Optional flanges available in 8", 10", 12" or 14".

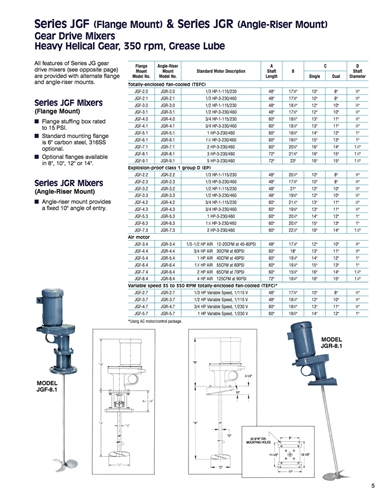

Other Specifications

Model Motor Shaft
Diameter 		Shaft
Length 		Single Propeller
Diameter 		Dual Propeller
Diameter 		Ship Weight
(lbs)
JGF-2.0 1/3HP-1-115/230-TEFC* 3/4" 48" 10" 8" 95
JGF-2.1 3HP-3-230/460-TEFC* 3/4" 48" 10" 8" 95
JGF-2.2 1/3HP-1-115/230-EP 3/4" 48" 10" 8" 105
JGF-2.3 1/3HP-3-230/460-EP 3/4" 48" 10" 8" 105
JGF-3.0 1/2HP-1-115/230-TEFC* 3/4" 48" 12" 10" 100
JGF-3.1 1/2HP-3-230/460-TEFC* 3/4" 48" 12" 10" 100
JGF-3.2 1/2HP-1-115/230-EP 3/4" 48" 12" 10" 120
JGF-3.3 1/2HP-3-230/460-EP 3/4" 48" 12" 10" 120
JGF-3.4 13 to 1/2HP AIR MOTOR**
Air Requirements: 12-20CFM at 40-80PSI 		3/4" 48" 12" 10" 95
JGF-4.0 3/4HP-1-115/230-TEFC* 3/4" 60" 13" 11" 110
JGF-4.1 3/4HP-3-230/460-TEFC* 3/4" 60" 13" 11" 110
JGF-4.2 3/4HP-1-115/230-EP 3/4" 60" 13" 11" 120
JGF-4.3 3/4HP-3-230/460-EP 3/4" 60" 13" 11" 120
JGF-4.4 3/4HP AIR MOTOR**
Air Requirements: 30CFM at 60PSI 		3/4" 60" 13" 11" 110
JGF-5.1 1HP-3-230/460-TEFC* 1" 60" 14" 12" 120
JGF-5.3 1HP-3-230/460-EP 1" 60" 14" 12" 130
JGF-5.4 1HP AIR MOTOR**
Air Requirements: 40CFM at 40PSI 		1" 60" 14" 12" 100
JGF-6.1 11/2 HP-3-230/460-TEFC* 1" 60" 15" 13" 120
JGF-6.3 11/2 HP-3-230/460-EP 1" 60" 15" 13" 130
JGF-6.4 11/2 HP AIR MOTOR**
Air Requirements: 55CFM at 60PSI 		1" 60" 15" 13" 105
JGF-7.1 2HP-3-230/460-TEFC* 1-1/4" 60" 16" 14" 125
JGF-7.3 2HP-3-230/460-EP 1-1/4" 60" 16" 14" 135
JGF-7.4 2HP AIR MOTOR**
Air Requirements: 65CFM at 70PSI 		1-1/4" 60" 16" 14" 110
JGF-8.1 3HP-3-230/460-TEFC 1-1/4" 72" 16" 15" 145
JGF-8.4 4HP AIR MOTOR**
Air Requirements: 125CFM at 90PSI 		1-1/4" 72" 16" 15" 110
JGF-9.1 5HP-3-230/460-TEFC 1-1/4"
style="vertical-align:top"> 72" 16" 15" 115

Notes:
* Mill and Chemical Duty Motors available
** Air Set required.
