Glycol Feeders (50 Gallon) - 3 Types to choose from
Glycol Feeders (50 Gallon) - 3 Types to choose from

Alternative Views:

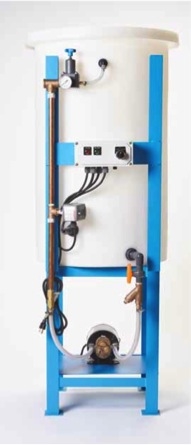

Glycol Feeders (50 Gallon) - 3 Types
Our Price: $5,499.00
Sale Price: $4,999.00
Savings: $500.00


Quantity in Stock:4

Free Shipping
Availability: Usually Ships in 1 to 2 Weeks
Product Code: GL-50

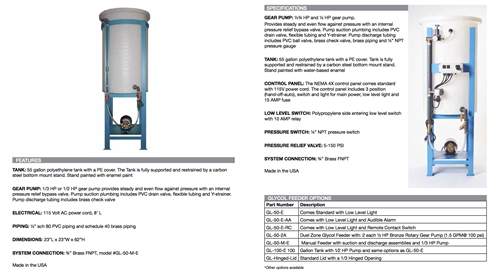

The following document(s) will be emailed upon shipment of your order or download now:


GL-50*:

Motor Size*:

Outdoor Option*:

Qty:
Description Shipping & Transit Times


Glycol Feeders

50 Gallon Glycol Feeders. This model design comes with three types to choose from:
  • Part Number GL-50 (default) - 50 Gallon Glycol Feeder with a low-level warning light.
  • Part Number GL-50-AA - 50 Gallon Glycol Feeder with a low-level warning light and Audible Alarm.
  • Part Number GL-50-AA-RC - 50 Gallon Glycol Feeder with low-level warning light, Audible Alarm and Remote Contact.
  • Part Number GL-50-E-OR - 50 Gallon Outdoor Glycol Feeder
Tank Description
The glycol feeder tank is a 55-gallon polyethylene tank with a PE cover. The tank is fully supported and restrained by a carbon steel bottom mount stand. Stand painted with a water-based enamel.

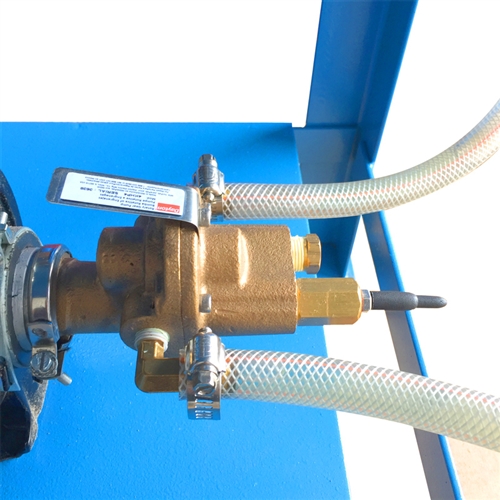

Gear Pump Motor Size Option:
Your glycol feeder may be ordered with a 1/3 HP, 1/2 HP, or 3/4 HP and 1/2 HP motor. These gears pumps provide steady and even flow against pressure with an internal pressure relief bypass valve.

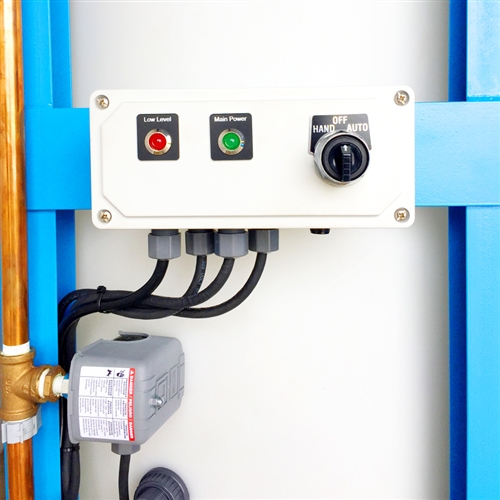

Control Panel
The Standard Glycol Feeder includes a NEMA 4X control panel that comes standard with an 115V power cord. The control panel includes 3 positions (hand-off-auto), switch and light for main power, low level light and 15 AMP fuse.

Other Features:
  • Low Level Switch - Polypropylene side entering low level switch with 10 AMP relay.
  • Pressure Switch - Comes with a 1/4” NPT pressure switch.
  • Pressure relief valve - Rated at 5 to 150 PSI.
  • System Connection - 3/4” Brass FNPT.
  • Pump is rated at 1.3 GPM at 100 psi.
The suction pump side includes:
  • PVC drain valve.
  • Flexible tubing.
  • Y-strainer.
The discharge pump discharge tubing includes:
  • PVC ball valve.
  • Brass check valve.
  • Brass piping.
  • 1/4” NPT pressure gauge.
Made in the USA.

Outdoor Glycol Feeder

The final option is for Outdoor Applications. This option includes a Standard Glycol Feeders with a TEFC Motor, Nema 3 Pressure Switch, and a Nema Rated Remote Contact (where required).
Frequently Asked Questions
What are the dimensions of the GL-50-E Glycol Feeder?
The dimensions are: 62” High x 26” Wide x 31” Deep
What is the ship weight of a Chemworld Glycol Feeder?
The shipping Shipping Weight is approx. 225 lbs.
